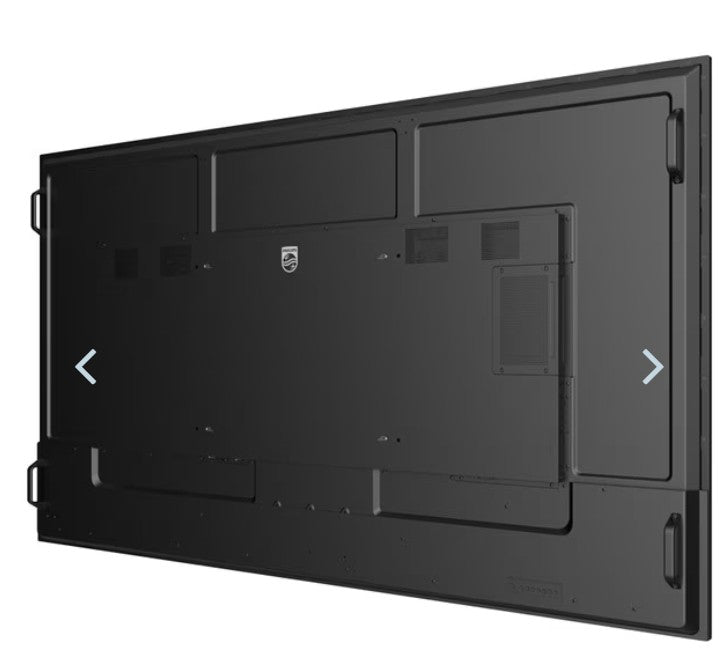

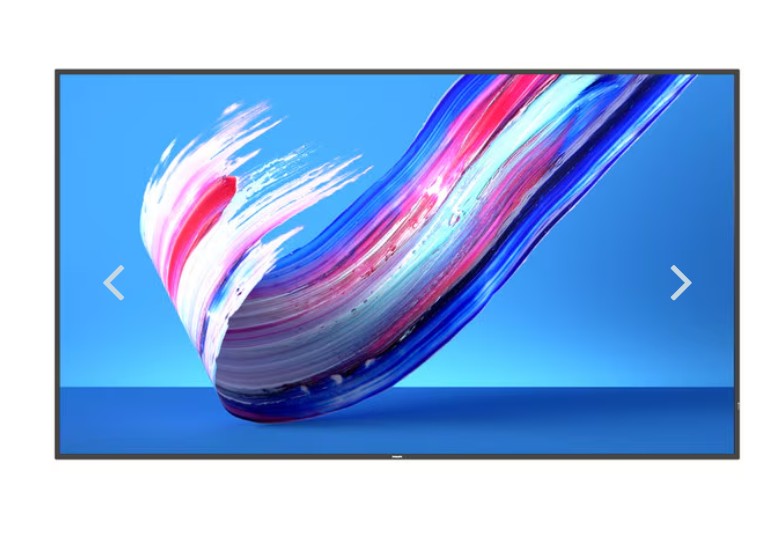

Philips 55BDL3550Q Q-Line 55" Signage Solutions Display

$1,485.00

SKU: 55BDL3550Q

Signage Solutions Q-Line Display

55BDL3550Q/75

Stand out

Inform and enthrall with a Philips Q-Line Professional 4K Ultra HD Display. This reliable solution can be up and running as quickly as you need-with no additional hardware.

Operate, monitor and maintain with CMND & Control

Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

FailOver ensures content is always playing

From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.

CMND & Create. Develop and launch your own content

Take control of your content with CMND & Create. A drag-and-drop interface makes it simple to publish your own content-whether it's a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure your stills, text, and video will be up and running in no time.

Integrated media player. Easily schedule USB content

Easily schedule content to play from USB. Your Philips Professional Display will wake from standby to play the content you want, and then return to standby once playback is done.

Android SoC processor. Native and web apps

Control your display via an Internet connection. Android-powered Philips Professional Displays are optimized for native Android apps, and you can install web apps directly to the display too. A new Android 8 ensures the software is kept secure and remain to the latest specification for longer.

Connect and control your content via the cloud

Connect and control your content via the cloud with the integrated HTML5 browser. Using the Chromium based browser, design your content online and connect a single display, or your complete network. Show content in both landscape and portrait mode, with fullHD resolution. Simply connect the display to the internet using WiFi or with an RJ45 cable, and enjoy your own created playlists.

Technical Specifications

Picture/Display
Diagonal screen size (metric)

138.7 cm

Diagonal screen size (inch)

54.6 inch

Panel resolution

3840 x 2160

Optimum resolution

3840 x 2160 @ 60 Hz

Brightness

400 cd/m²

Contrast ratio (typical)

1300:1

Dynamic contrast ratio

500,000:1

Response time (typical)

9 ms

Aspect ratio

16:9

Viewing angle (horizontal)

178 degree

Viewing angle (vertical)

178 degree

Pixel pitch

0.315 x 0.315 mm

Display colors

1.07 Billion

Clinical image

D-Image preset (dicom part 14 compatible)

Operating system

Android 8.0

Panel technology

IPS

Picture enhancement
- 3/2 - 2/2 motion pull down
- 3D Combfilter
- 3D MA deinterlacing
- Dynamic contrast enhancement
- Motion compens. deinterlacing
- Progressive scan
Supported Display Resolution
Computer formats
- 1920 x 1080, 60Hz
- 1600 x 1200, 60Hz
- 1440 x 900, 60Hz
- 1280 x 1024, 60Hz
- 1280 x 720, 60Hz
- 1280 x 800, 60Hz
- 1024 x 768, 60, 70, 75Hz
- 720 x 400, 70Hz
- 640 x 480, 60, 67, 72, 75Hz
- 1152 x 870, 75Hz
- 1680 x 1050, 60Hz
- 800 x 600, 56, 60, 72, 75Hz
- 1152 x 864, 75Hz
- 832 x 624, 75Hz
Video formats
- 3840 x 2160, 60Hz
- 3840 x 2160, 30Hz
- 480i, 60Hz
- 480p, 60Hz
- 576i, 50Hz
- 576p, 50Hz
- 1080p, 50, 60Hz
- 1080i, 50, 60Hz
- 720p, 50,60 Hz
Connectivity
Video input
- DVI-D (x1)
- HDMI 2.0 (x2)
- USB 2.0 (x2)
- VGA (Analog D-Sub) (x1)
Audio input

3.5 mm jack

Audio output

3.5mm jack

External control
- RJ45
- RS232C (in/out) 2.5 mm jack
- IR (in/out) 3.5 mm jack
Convenience
Energy saving functions

Smart Power

Tiled Matrix

Up to 15 x 15

Start-up
- Switch on delay
- Switch on status
- Boot on source
Start-up window

enable / disable Philips logo

Keyboard control
- Lockable
- Hidden
Network controllable
- RS232
- RJ45
Signal loop through
- RS232
- IR Loopthrough
Placement
- Landscape (18/7)
- Portrait (18/7)
Remote control signal

Lockable
Dimensions

Bezel width

13.9 mm (Even bezel)

Set Width

1241.8 mm

Set Height

712.6 mm

Set Depth

63.6 mm

Set Width (inch)

48.89 inch

Set Height (inch)

28.06 inch

Set Depth (inch)

2.50 inch

VESA Mount

400mm x 400mm , M6

Product weight

16.6 kg

Product weight (lb)

36.60 lb
Operating conditions

Temperature range (operation)

5 ~ 40 °C

Temperature range (storage)

-20 ~ 60 °C

MTBF

50,000 hour(s)

Humidity range (operation)[RH]

20 ~ 80% RH (No condensation)

Humidity range (storage) [RH]

5 ~ 95% RH (No condensation)

Altitude

0 ~ 3000 m
Power

Mains power

100 ~ 240 VAC

Standby power consumption

<0.5 W

Consumption (Max)

175 W

Consumption (Typical)

125 W

Power Saving Features

Smart Power

Energy Label Class

G
Sound

Built-in speakers

2 x 10W RMS
Multimedia Applications
USB Playback Video
- MPEG
- H.264
- H.263
- H.265
USB Playback Picture
- JPEG
- BMP
- PNG
USB Playback Audio
- AAC
- HEAAC
- MPEG
Accessories
Included accessories
- AC Power Cord
- RS232 cable
- Remote Control
- Batteries for remote control
- Quick start guide
Included Accessories
- IR sensor cable (1.8 m) (x1)
- RS232 daisy-chain cable
- Philips logo (x1)
- USB Cover and screw (x2)
Stand

BM05922(optional)
Miscellaneous
Warranty

3 year warranty

On-Screen Display Languages
- English
- French
- German
- Italian
- Polish
- Turkish
- Russian
- Simplified Chinese
- Spanish
- Traditional Chinese
- Arabic
- Japanese
Regulatory approvals
- CE
- CB
- BSMI
- CU
- EPA
- ETL
- FCC, Class A
- J-Moss
- PSB
- VCCI
Internal Player
CPU
- Dual core cortex A53 1.1G Hz
- Dual core cortex A73 1.15G Hz
GPU

ARM Mali G51

Memory
- 2GB DDR3
- 8GB

What's in the box?

Other items in the box

AC Power Cord
RS232 cable
Remote Control
Batteries for remote control
Quick start guide
