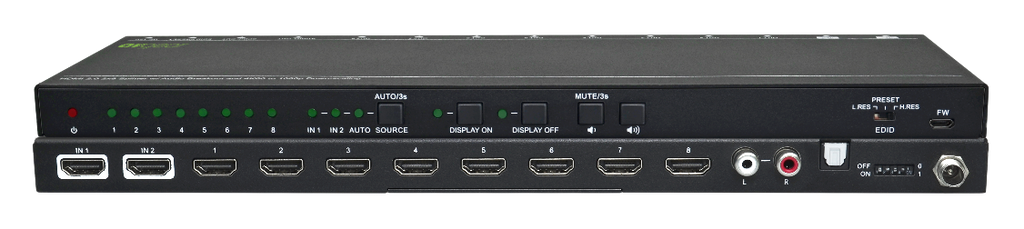

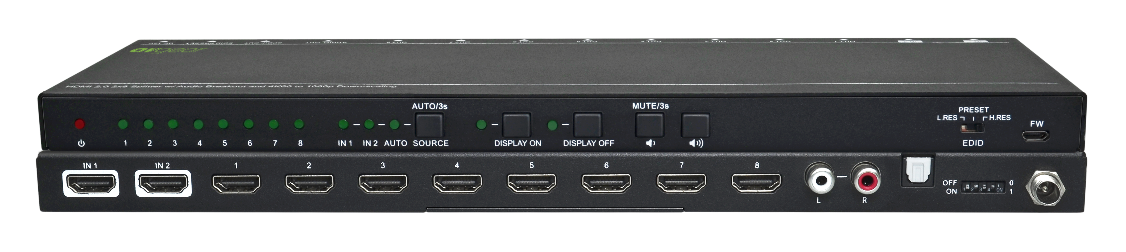

The AVG-UHS28 is an ultra thin 2×8 switcher with two HDMI inputs and eight HDMI outputs. This 2×8 switcher supports HDMI video
resolutions up to 4K@60Hz 4:4:4, 1080P and multichannel audio. There are multiple built-in EDID settings or it will use the EDID from the display. The switcher will de-embed digital stereo audio to provide an analog audio source for an existing audio system.

• Features
•  Supports HDMI 2.0 and video resolutions up to 4K@60Hz 4:4:4.
•  HDMI inputs support HDCP 2.2 and the outputs support HDCP1.4.
•  Supports video resolution downscaling, the 4K@60Hz input can be automatically degraded to 1080P output for compatibility with 1080P displays.
•  18Gbps high bandwidth.
•  Features RCA (L/R) jack and Toslink connector for de-embedded audio.
•  Advanced EDID management: multiple presets and user defined allowed.
•  Built-in equalizer for signal enhancement to avoid signal attenuation in transmission.
•  Supports CEC control to turn the displays on/off and adjust their volume.
•  LED indicators display the current operating status.
•  Firmware update via Micro-USB port.
