The AVG-SC51TS is a compact seamless scaler switcher with 5 video inputs and 3 audio inputs. The VGA input supports VGA, YPbPr and C-Video, ensuring the scaler switcher is compliant with multiple video signal types. It is controllable via the front panel, IR, RS232 and a web-based GUI. The AVG- SC51TS scales & switches any video signal to the HDMI output and the HDBaseT output simultaneously.

Features

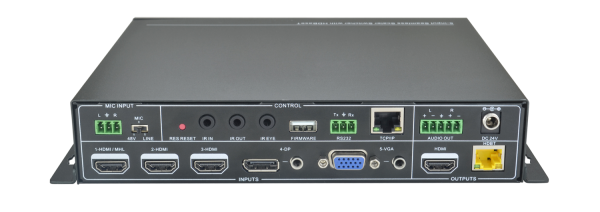

• 5 Video Inputs: 1 HDMI/MHL, 2 HDMI, 1 Display Port & 1 VGA
• VGA input supports C-Video, YPbPr and VGA
• MIC input supports balanced / unbalanced signal
• 3 Level MIC input, supports a condenser microphone, dynamic microphone and wireless microphone
• 48V Phantom power available
• Upscale to HDBaseT & HDMI simultaneously up to 1080P.
• Maximum HDBaseT transmission distance up to 70M over a single CAT5e / CAT6a cable
• Supports PoH
• Output resolution is selectable
• 4 and HDCP2.2 compliant

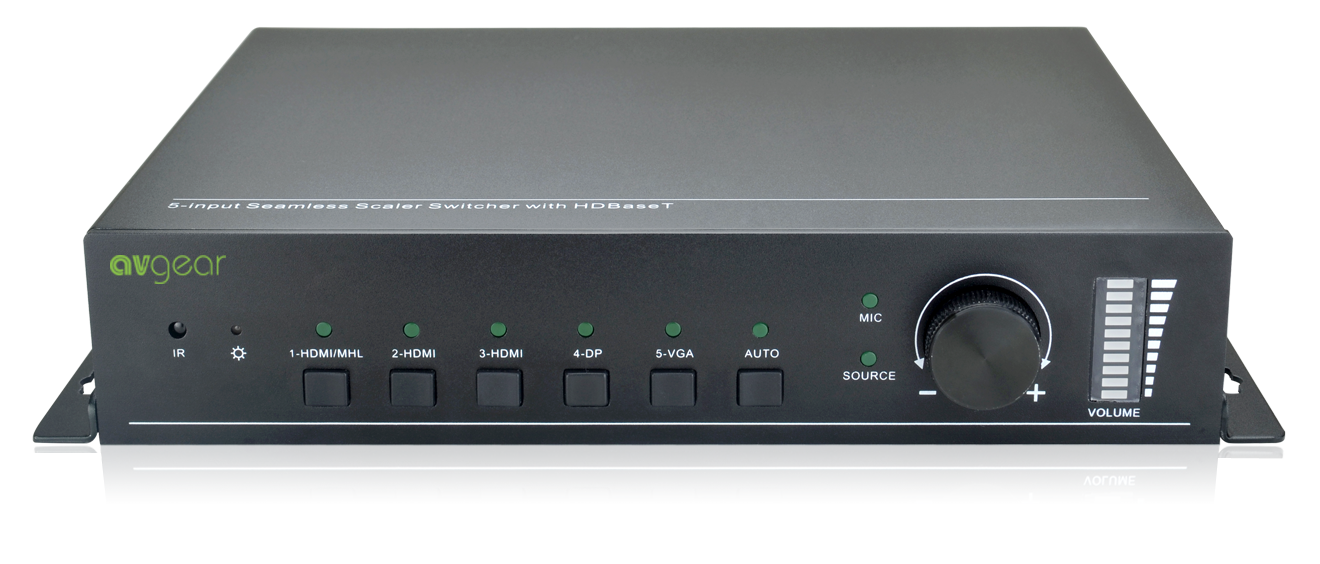

• Front panel lockout feature
• Controllable via front panel, IR, RS232 and web-based GUI
• Controllable via HDBT receiver AVG-HD300SR at display end.
• CEC control
