AV Gear UHC41A - 4×1 Presentation Switcher with USB-C
$420.00
SKU: AVG-UHC41A

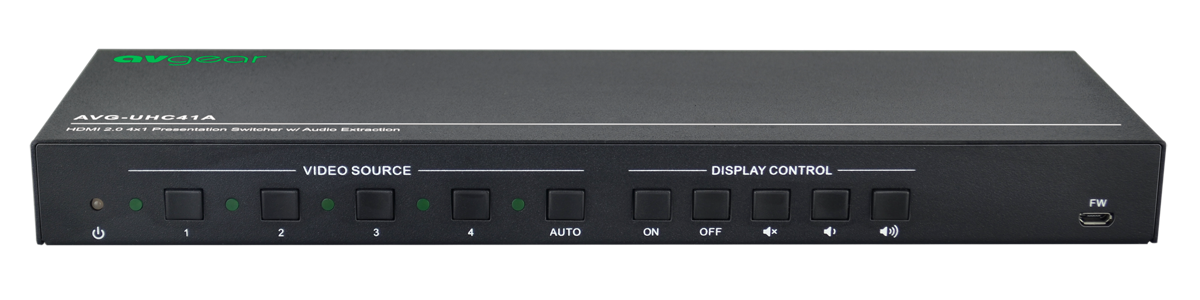

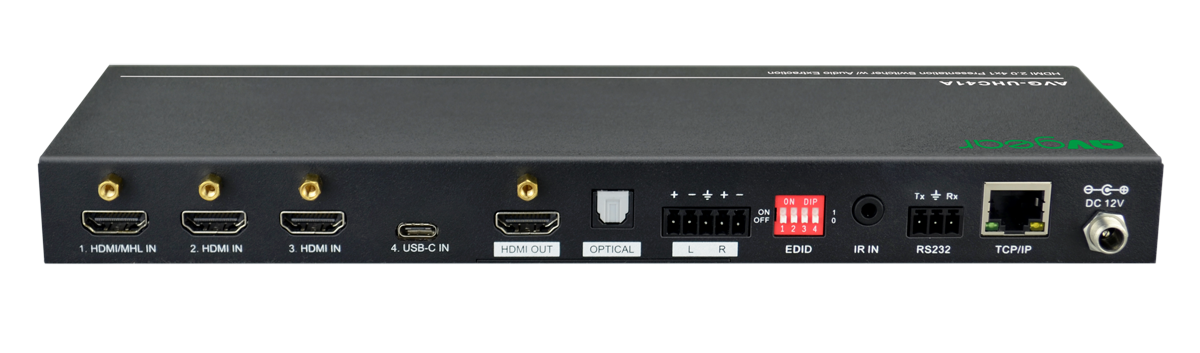

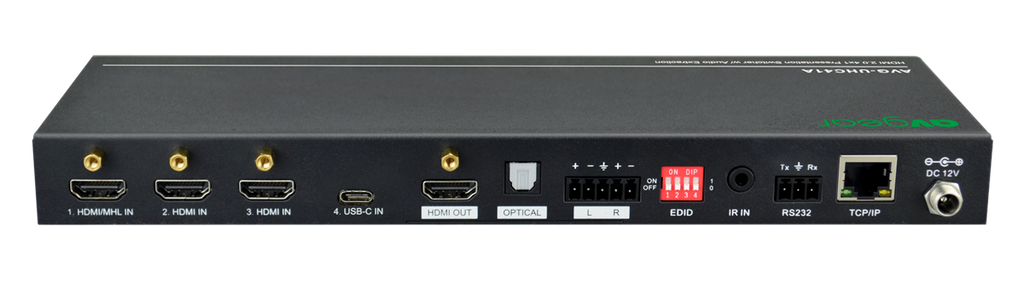

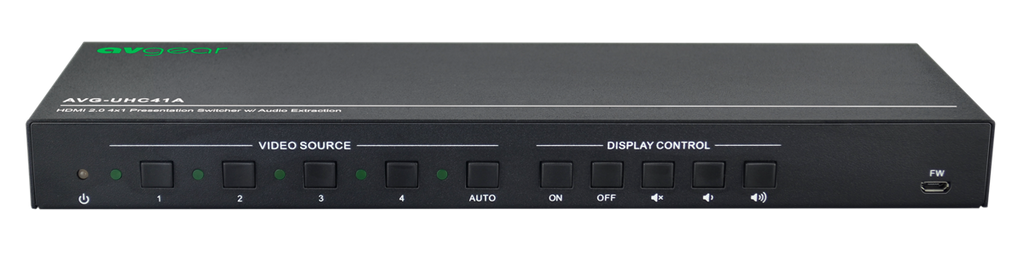

The AVG-UHC41A is a 4×1 Presentation Switcher. The switcher allows selection of four different sources (three HDMI inputs and one USB-C input) which can be switched to the HDMI output. It supports video resolutions up to 4K@60Hz 4:4:4 8 bits, 1080P and 3D. It features a built-in EDID dip switch on the rear panel.
The switcher supports stereo and multi channel audio on the HDMI inputs. The audio embedded into the HDMI output also simultaneously de-embeds to an optical digital audio output and a balanced analogue audio output.
Features:
- Supports HDMI 2.0 and video resolutions up to 4K@60Hz 4:4:4 8bit, 1080P, and 3D.
- 18Gbps bandwidth and supports HDR10, HDR10+, Dolby Vision.
- HDCP 2.2
- Features auto switching.
- CEC control for display volume and power control.
- Controllable via RS232 and IR.
- Optical and balanced analog audio, audio de-embedding.
- Smart EDID management for various applications and customised settings.
Specifications:
| Video | |
| Video Input | (1) HDMI/MHL, (2) HDMI, (1) USB-C |
| Video Input Connector | (3) Type-A female HDMI, (1) Type-C USB |
| HDMI Input Resolution | Up to 4Kx2K@60Hz 4:4:4 8bit |
| MHL Input Resolution | Up to 1080P@60Hz |
| USB-C Input Resolution | Up to 4Kx2K@30Hz 4:4:4 |
| Video Output | (1) HDMI |
| Video Output Connector | (1) Type-A female HDMI |
| HDMI Output Resolution | Up to 4Kx2K@60Hz 4:4:4 8bit |
| HDMI Version | 2.0 |
| HDCP Version | 2.2 |
| MHL Version | 2.2 |
| HDR 10 | Supported |
| CEC | Supported |
| HPD | Supported |
| Audio | |
| Audio Output | (1) OPTICAL, (1) Stereo balanced L/R |
| Audio Output Connector | (1) Toslink connector, (1) 5-pin terminal block |
| HDMI Audio Format | LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS: X™, and DTS-HD® Master Audio™ pass-through. |
| Stereo analog L/R audio Format | PCM |
| Toslink Digital Audio Format | PCM, Dolby Digital, DTS, DTS-HD |
| Max Output Level | 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line level signal |
| THD+N | <0.05% (-80dB), 20Hz ~ 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level) |
| SNR | >80dB, 20Hz ~ 20KHz bandwidth |
| Crosstalk Isolation | >70dB, 10KHz sine at 0dBFS level (or max level before clipping) |
| L-R Level Deviation | < 0.3dB, 1KHz sine at 0dBFS level (or max level before clipping) |
| Frequency Response Deviation | <± 0.5dB 20Hz ~ 20KHz |
| Output Load Capability | 1KΩ and higher (supports 10x paralleled 10KΩ loads) |
| Stereo Channel Separation | >70dB@1KHz |
| Control Part | |
| Control | (1) FW, (1) EDID, (1) IR IN, (1) RS232, (1) TCP/IP |
| Control Connector | (1) Micro-USB, (1) 4-pin DIP switch,(1) 3.5mm mini jack, (1) 3-pin terminal block, (1) RJ45 |
| General | |
| HDMI 2.0 Cable Length | 4K@60Hz 4:4:4 ≤ 5m,4K@60Hz 4:2:0 ≤ 10m,
1080P ≤ 15m |
| Bandwidth | 18Gbps |
| Operation Temperature | -10℃ ~ +55℃ |
| Storage Temperature | -25℃ ~ +70℃ |
| Relative Humility | 10%-90% |
| External Power Supply | Input: AC 100~240V, 50/60Hz, Output: 12V DC 1A |
| Power Consumption | 5W (Max) |
| Dimension (W*H*D) | 262mm x 26mm x 84mm |
| Net Weight | 320g |
