50-75" Heavy Duty Tilt Swivel TV Wall Bracket

$129.00
SKU: DBTS5075

50-75" Heavy Duty Tilt Swivel TV Wall Bracket

Mount your Big Screen Plasma or LCD on the wall.
This extra heavy duty bracket is perfect for mounting your big LCD or PLASMA to the wall. It's a tilt type bracket, which allows you to tilt your screen up to 15 degrees up or down to best suit your viewing position. It also includes a dual articulated arm which allows you to pull the screen out from the wall and face it in virtually any direction you want!

New model suitable for stud walls,
The back plate, which mounts to the wall, on this model is 630mm wide (effective max hole spacing 600mm) perfect for homes with stud walls with a maximum stud spacing of 600mm.

Bubble Level
This bracket includes a reusable bubble level / spirit level to assist with accurate installation of the bracket. Some brackets have a small built-in bubble level, but this stand-alone bubble level can also be used for any other jobs you have!

Will it fit my screen?
TV Screen SizeTV WeightTV Mounting Holes
This bracket will fit your TV screen (and not be visible from front on) if your TV is:
- At least 920mm wide.
- At least 510mm tall.
The four threaded mounting holes on the back of your TV need to be:
- No more than 880mm apart side to side.
- No more than 480mm apart top to bottom.
Maximum TV weight capacity is 100kg.

Features:
- STRONG DUAL ARM / DUAL PIVOT
- TILT 15 DEGREE
- SWIVEL 90 DEGREE(45 Degree each side)

- STRONG 2mm thick steel construction
- Reversible so it can swing from either left or right
- Built-in spirit level for more accurate installation
- Easy to install
- Black powder coated steel
- Fixings supplied for most common installations

Specifications:

Bracket width: 920mm
Arm height: 510mm
Maximum Screens mounting holes: 880mm wide and 480mm high (centre to centre of the hole)

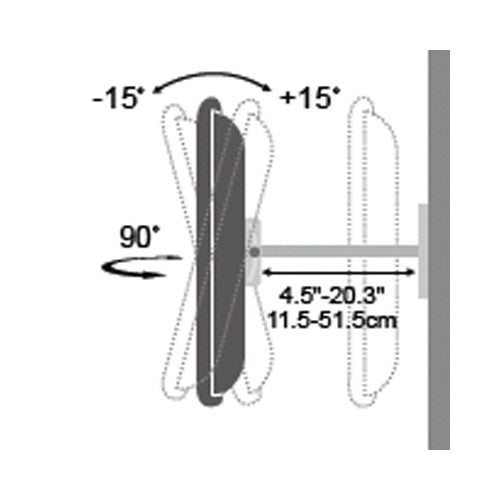

Horizontal Pivot: 45 degrees
Tilt: 15 degrees up or down
Distance from wall: 110-520 mm
Weight Capacity: 100 kg
Recommended screen size: 50-75 inch
Colour: Black

Please Note:
Some panels require M6 16mm bolts which are not included. This bracket includes a variety of screws/bolts which are suitable for most installations. Unfortunately, due to the enormous range of TV brands and models available, we're unable to guarantee that the included fixings will suit every installation. Please check manufacturers specifications of screen prior to installing.

As with all wall brackets it is essential that this bracket is fixed to a timber stud when mounting on plaster board walls.
